Applications
 It allows rapid installation of pressure feed and test points for main cables.
Description

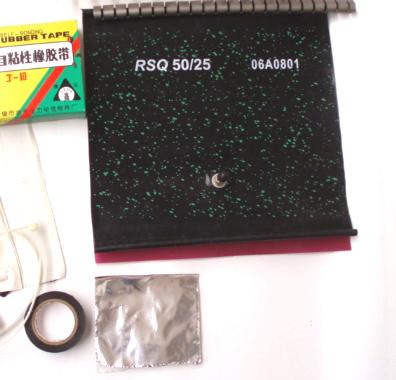

 RSQA sleeve is made of super-sleeve material, which combines the strength and durability of composite design with proven heat-shrink technology. Sleeve material is composed of several layers of specially blended polymers and adhesives, a fiber-reinforcing layer.
Features

1.reinforced heat-shrinkable wraparound sleeve with incorporated pressure access point.
2.Special high performance hot-melt adhesive to ensure a reliable seal.
3.Suitable for all types of pressurised cables as pressure feeding ,pressure access, pressure monitoring.
4.Product can be used immediately after cooling down to ambient temperature.
5.Three size to cover all diameters from 15 to 95mm.

　

　

Selection


Cable pairs
Pair Dia
Size
50
0.4/0.5/0.6
RSQA45/15-250
100
0.4/0.5/0.6
150
0.4/0.5/0.6
200
0.4/0.5/0.6
RSQA65/20-250
300
0.4/0.5/0.6
400
0.4/0.5/0.6
500
0.4/0.5/0.6
600
0.4/0.5/0.6
800
0.4/0.5/0.6
RSQA95/30-250
900
0.4/0.5/0.6
1200
0.4/0.5/0.6
1500
0.4/0.5
1800
0.4
