Applications
 Form a pressure dam in telecommunications cable

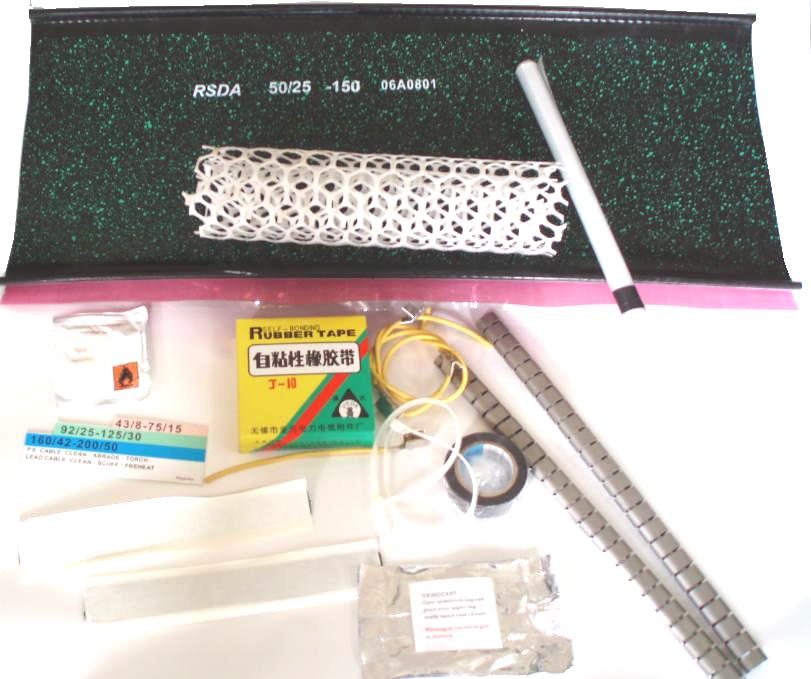

Description

RSDA sleeve is made of super-sleeve material, which combines the strength and durability of composite design with proven heat-shrink technology. Sleeve material is composed of several layers of specially blended polymers and adhesives, a fiber-reinforcing layer. Used with suitable commercially available resins, the RSDA system forms a pressure block for the whole pressurized cable range.

　
Features

1.It uses fibre-reinforced materials ensuring excellent product performance and simple installation.
2.Just few sleeve sizes will accommodate single or double sheath cable with diameters from 0.6 to 0.4mm.

　

　

Selection

　

Cable Pairs
Pair Dia
Size
50
0.4/0.5/0.6
RSDA 25/15-100
100
0.4/0.5/0.6
150
0.4/0.5/0.6
200
0.4/0.5/0.6
RSDA 50/25-150
300
0.4/0.5/0.6
400
0.4/0.5/0.6
500
0.4/0.5/0.6
600
0.4/0.5/0.6
800
0.4/0.5/0.6
RSDA 70/50-200
900
0.4/0.5/0.6
1200
0.4/0.5/0.6
1500
0.4/0.5
1800
0.4
2400
0.4
RSDA 100/70-250
