Applications
For Non-pressurized cable networks-with metal canister or cardboard liner as protection for increased mechanical strength. it provides a fast and sample way to seal telephone cable splices in nonpressurized cable.
Description

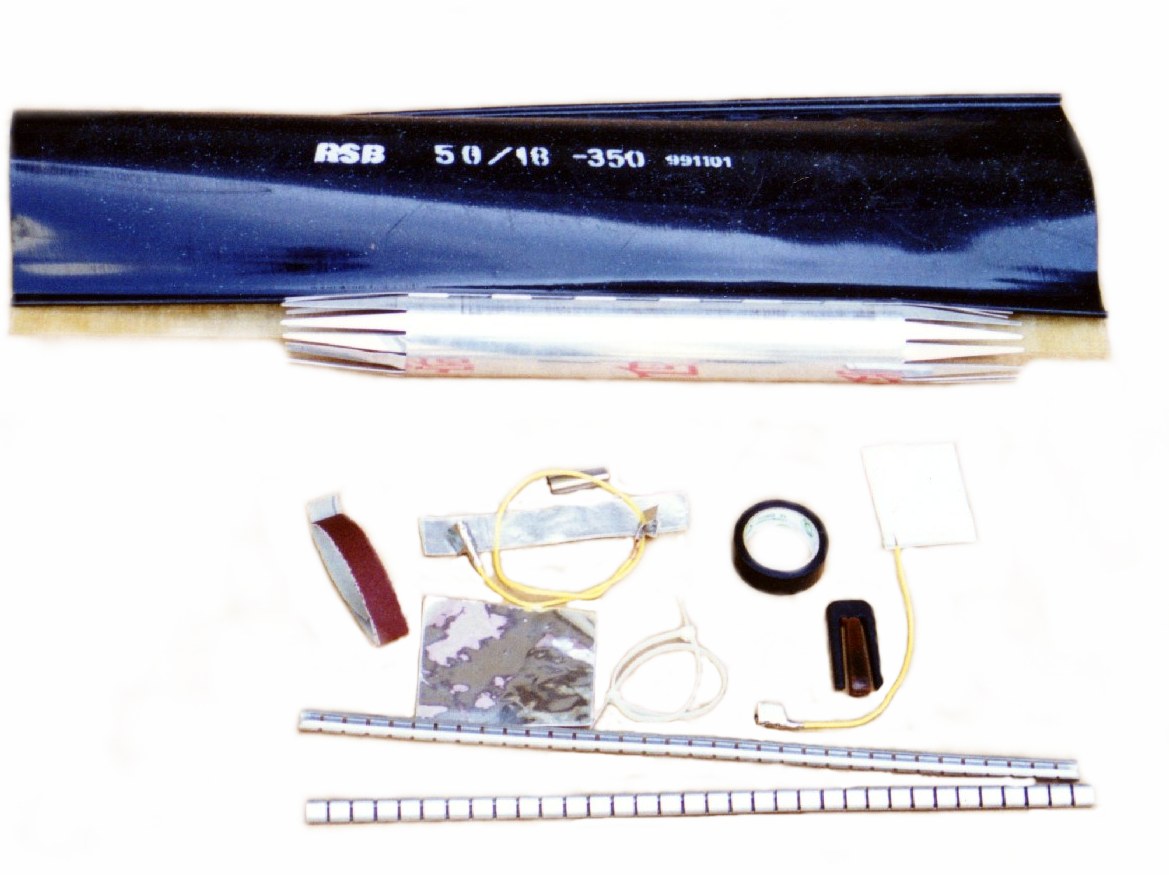

250 sleeve is made of a crosslink heat-shrinkable,thermally-stabilized polyolefin, which is coated with a hot-melt adhesive, it will bond at the temperatures attained during the shrinking operation. The outside surface of the sleeve is covered with a temperatures- indicating  paint, which will change color when heated and allows a uniform shrinking of the product. The RSB250 has a aluminum canister providing mechanical protection of joint. Flexible crowns at the end provide a smooth transition from the joint to the cable.
Features 1. Provides water-tight seal upon recovery with hot-melt adhesive forms
2. Offers mechanical durability
3. Application procedure is quick, simple and clean
4. Covered with heat sensitive paint and adhesive flow
5. Steel channel provides permanent closure system
6. Up to 3 cables at each end can be accommodated using three finger clips with hot-melt adhesive.

กก

กก

Selection

Dimention(mm)

Size

Splice Bundle
Diameter (A) Max
Cable Diameter
(B) Min
Max. Joint Gap
(L)
RSB 250 32/10-250
32
10
250
RSB 250 42/15-300
42
15
300
RSB 250 50/18-300
50
18
300
RSB 250 62/22-350
62
22
350
RSB 250 62/22-500
62
22
500
RSB 250 75/15-350
75
15
350
RSB 250 75/15-500
75
15
500
RSB 250 92/30-350
92
30
350
RSB 250 92/30-500
92
30
500
RSB 250 100/35-350
100
35
350
RSB 250 100/35-500
100
35
500
RSB 250 125/38-350
125
38
350
RSB 250 125/38-500
125
38
500
